詳細情報 |
|||
| 材料: | ステンレス鋼、アルミニウム | タイプ: | ワイヤーロープクリップ |
|---|---|---|---|
| 色: | ナチュラルアルマイト/白/黒ペイント | サイズ: | 25*25mm |
| ケーブルの直径: | φ0.8mm～φ5.0mm | ミニブレーキングロード: | 12.5kg～600kg |
| 安全な作業負荷: | 2.5kg～120kg | 寸法（l*w*h）: | 15*15*8.5mm - 42*42*22mm |
| 関数: | 繋がり | パッキング: | カートン |
| Moq: | 100個のPC | サンプルの可用性: | 利用可能 |
| カスタマイズ: | OEMおよびODMの歓迎 | リードタイム: | 15日 |
| 不完全な率: | <0.2％ | ||
| ハイライト: | 25*25MM Cable Gripper,Ceiling Mounting Cable Gripper,Connection Wire Rope Clip |
||
製品の説明

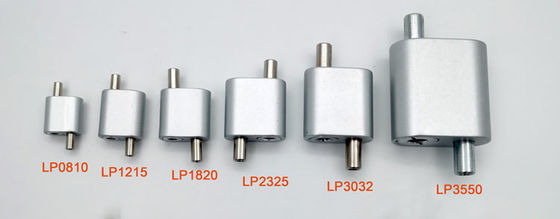

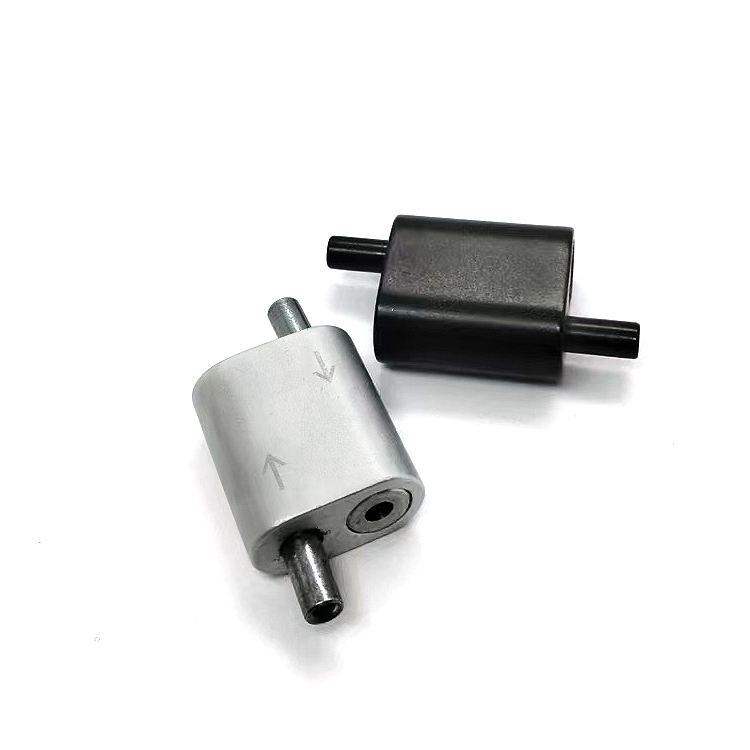

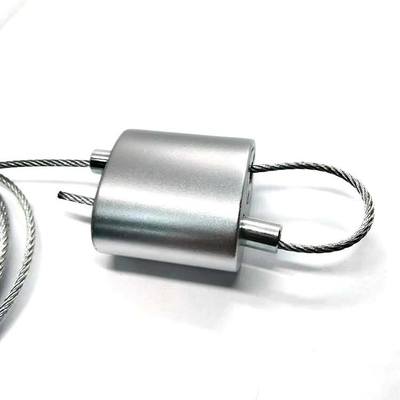

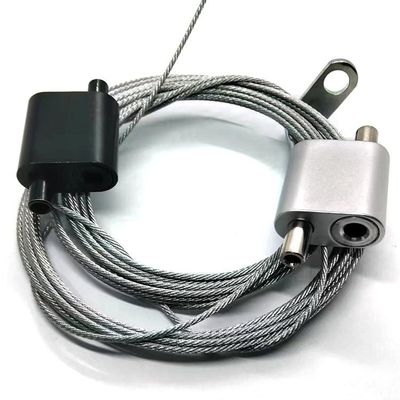

Ceiling Mounting Steel Wire Gripper Kit Cable Clips Hanging Kit for Lamp Wire Rope Cable Management
Product Specifications
| Cable Diameter | Mini Breaking Load | Safe Work Load | Size (L*W*H) |
|---|---|---|---|
| φ0.8mm | 12.5kg | 2.5kg | 15*15*8.5 |
| φ1.0mm | 50kg | 10kg | |
| φ1.2mm | 80kg | 16kg | 20*18*10 |
| φ1.5mm | 130kg | 26kg | |
| φ1.8mm | 180kg | 36kg | 25*25*12 |
| φ2.0mm | 200kg | 40kg | |
| φ2.5mm | 300kg | 60kg | 30*30*15 |
| φ3.0mm | 400kg | 80kg | |
| φ3.5mm | 450kg | 90kg | 42*42*22 |
| φ4.0mm | 500kg | 100kg | 42*42*22 |
| φ5.0mm | 600kg | 120kg |
Why Choose Our Product
- Excellent R&D capability with advanced processing and testing equipment (40+ machines including cutting, welding, and casting machines)
- Complete set of inspection equipment
- Customizable specifications including material, color, and dimensions
- Professional QA team
- Superior after-sales services
Frequently Asked Questions
How do you design a Ceiling Suspension Cable/Kits?
We consider multiple factors including workload, safety, abrasion resistance, environment, cycle life, flexibility, and cost when designing ceiling suspension cables/kits based on your specific application requirements.
How is the quality controlled and cost managed?
We implement four-stage inspections with complete QC processes and solutions to ensure quality while maintaining competitive pricing.
How to place an order?
Please provide complete specifications including: Material, Diameter, Construction, Coating, Length, Packing, Quantity, and any special Remarks.
What's the lead time for orders?
Standard lead time is 15 days, depending on order size. We can expedite urgent requests - please contact us for specific timing.
Shipping methods and delivery times?
- Express (DHL/UPS/TNT/FEDEX): 3-5 days
- Sea Freight: Contact us for port-specific details
- Client-designated agent: Provide your shipping agent's contact information
How are faulty products handled?
Our defect rate is below 0.2%. During warranty, we replace small quantities with new orders. For batch issues, we repair/resend or discuss recall solutions as needed.
