詳細情報 |
|||
| 材料: | 真鍮 | タイプ: | ワイヤーロープクリップ |
|---|---|---|---|
| ケーブル構造: | 7x7 または 1x19 | ワイヤー ロープの長さ: | 1000mmまたは要件として |
| ワイヤーロープの直径: | 1.0mm1.2mm1.5mm または要求に応じて | 負荷容量: | 20kg以上 |
| ケーブル直径: | 1.0-1.5mm | ケーブルの出口: | ボトム出口 |
| 表面処理: | サテンクロム | スタイル: | 専門 |
| 重量荷重: | 20-100kg | 最小距離: | 2インチ |
| 受渡し時間: | 30% の頭金支払い後 7 日 | Moq: | 1000pcs |
| 末端部品: | 固定、天井固定 | ||
| ハイライト: | Secure Cable Management Wire Rope Grip Lock,7x7 or 1x19 Cable Looping Gripper,1.0-1.5mm Adjustable Cable Gripper |
||
製品の説明

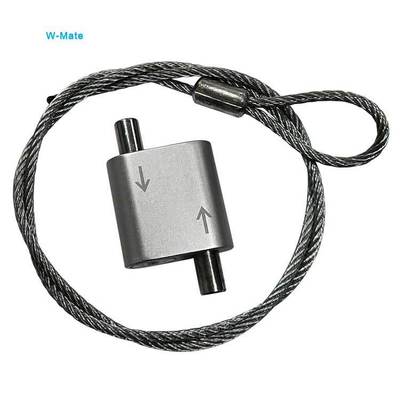

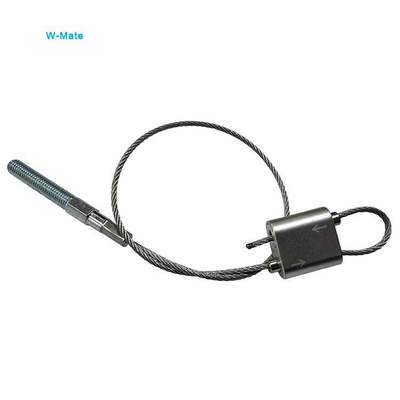

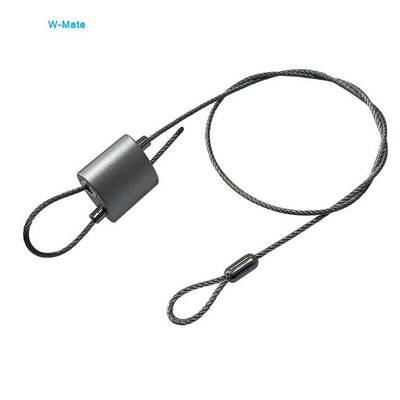

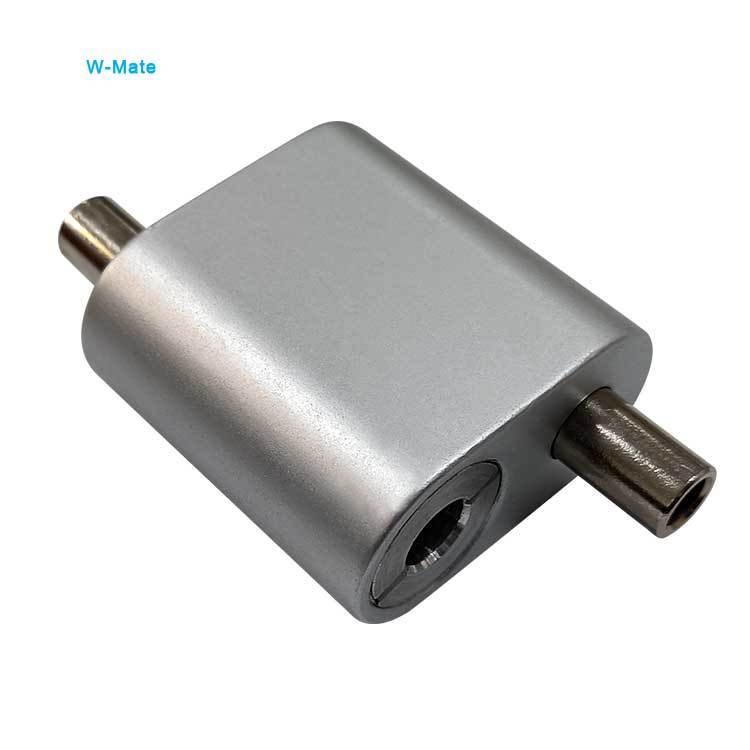

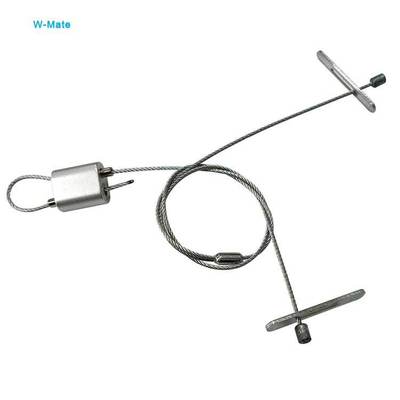

Premium brass wire rope grip lock with loops for secure cable management in suspended ceiling applications.
- Insert cable into Looping Gripper
- Pass cable through or around anchor point
- Insert cable back into Looping Gripper
Remove load from cable, depress plunger & adjust cable height. Release plunger to lock cable position.
Note: Maintain minimum 2 inch distance from all suspended objects or support structures.
| Parameter | Details |
|---|---|
| Product Name | Adjustable Wire Rope Grip Lock |
| Material | Brass |
| For Cable Diameters | 1.0-1.5mm |
| Cable Exit | Bottom Exit |
| Surface Treatment | Satin chrome |
| Weight Load | 20-100kg |
| Application | Suspended Ceilings (False Ceiling, Acoustic baffles, etc) |
| Certification | SGS-RoHS |
- Self-locking device creates adjustable loops that can be modified anytime
- Allows for reuse of both the gripper and steel cable
- Simplifies workflow when changing signage or displays
- Ideal solution for retail displays, event planning, and architectural applications
Ideal for hanging light fittings, signs, HVAC systems, pipes, artworks and other suspended applications. Features easy length adjustment and quick release mechanism.
Dongguan Wire Rope Mate Hardware Co., Ltd.
Specialists in lighting suspension kits, display hardware accessories, stamping pieces, wire ropes, and other hardware components for various industries including lighting, display, construction, and retail.
- Inquiry and consulting support
- Design application solutions
- Sample testing support
- Factory visits available
- OEM services including custom branding
- Comprehensive after-sales support
Packaging: Export standard wooden pallet
Shipping: Available by air or sea as requested
The built-in locking mechanism securely grips steel cable for the lifetime of the display. This self-locking device creates adjustable loops that can be modified anytime, allowing for reuse of components and simplifying workflow when changing signage.
Yes, we've conducted laboratory tests on the minimum breaking loads for all our looping gripper models.
Custom imprinting increases delivery time by 3-5 days.
