詳細情報 |
|||
| 材料: | ステンレス、アルミニウム+真鍮 | 表面仕上げ: | ニッケル |
|---|---|---|---|
| ケーブルの直径: | φ0.8mm、φ1.0mm、φ1.2mm、φ1.5mm、φ1.8mm、φ2.0mm、φ2.5mm、φ3.0mm、φ3.5mm、φ4.0mm、φ5.0mm | ミニブレーキングロード: | 12.5kg、50kg、80kg、130kg、180kg、200kg、300kg、400kg、450kg、500kg、600kg |
| 安全な作業負荷: | 2.5kg、10kg、16kg、26kg、36kg、40kg、60kg、80kg、90kg、100kg、120kg | サイズ（L*W*H）: | 15*15*8.5、20*18*10、25*25*12、30*30*15、42*42*22 |
| タイプ: | ワイヤーロープクリップ | Moq: | 1000pcs |
| パッケージング: | PEバッグ+内箱+箱 | 受渡し時間: | 7日 |
| サンプルの可用性: | 自由に供給されます | OEMサービス: | 提供された |
| カスタマイズ: | 素材、色、寸法 | リードタイム: | 15日（通常） |
| 不完全な率: | <0.2％ | ||
| ハイライト: | Stainless Steel Cable Gripper,7 Days Delivery Wire Rope Clip,1000pcs MOQ Cable Looping Gripper |
||
製品の説明

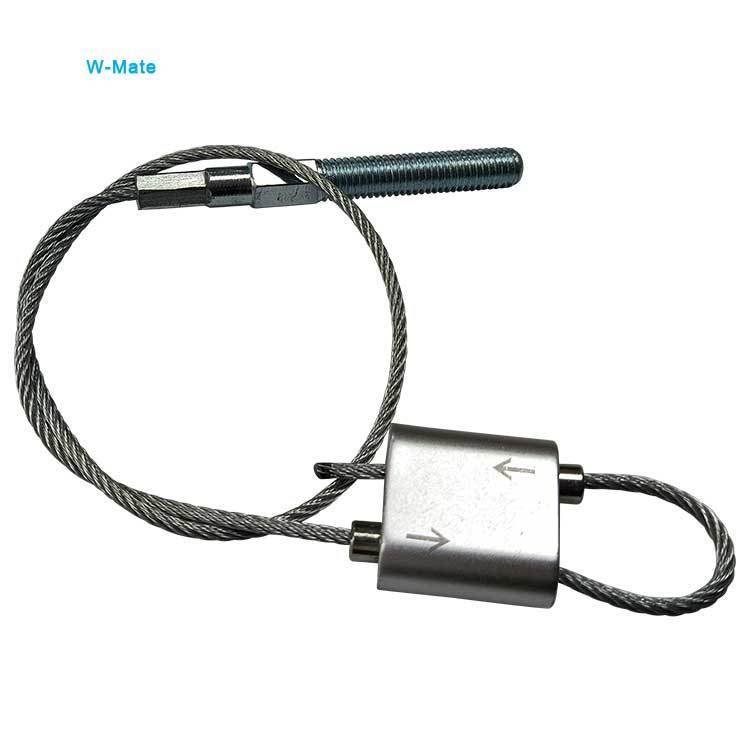

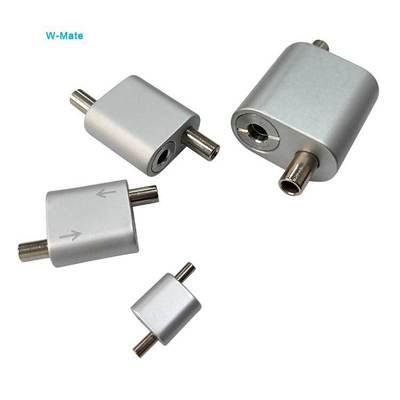

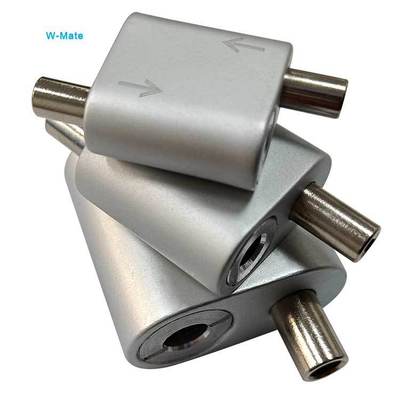

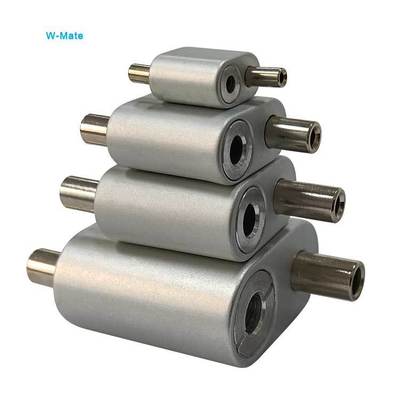

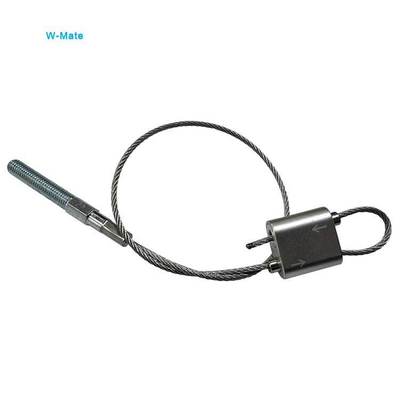

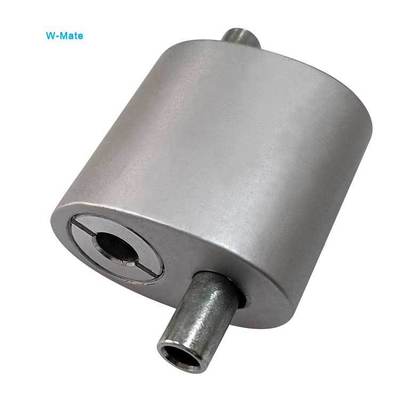

Cable Gripper Aircraft Cable Hanger Wire Rope Clip for Galvanized Looped Eyelet Cable
Technical Specifications
| Cable Diameter | Mini Breaking Load | Safe Work Load | Size (L*W*H) |
|---|---|---|---|
| φ0.8mm | 12.5kg | 2.5kg | 15*15*8.5 |
| φ1.0mm | 50kg | 10kg | |
| φ1.2mm | 80kg | 16kg | 20*18*10 |
| φ1.5mm | 130kg | 26kg | |
| φ1.8mm | 180kg | 36kg | 25*25*12 |
| φ2.0mm | 200kg | 40kg | |
| φ2.5mm | 300kg | 60kg | 30*30*15 |
| φ3.0mm | 400kg | 80kg | |
| φ3.5mm | 450kg | 90kg | 42*42*22 |
| φ4.0mm | 500kg | 100kg | 42*42*22 |
| φ5.0mm | 600kg | 120kg |
Frequently Asked Questions
Why choose our Cable Grippers?
- Excellent R&D capability with advanced processing and testing equipment (40+ machines including cutting, welding, and casting machines)
- Complete inspection equipment and quality control processes
- Customizable specifications including material, color, and dimensions
- Professional QA team and superior after-sales service
How do you design Ceiling Suspension Cable Kits?
We consider multiple factors including workload, safety requirements, environmental conditions, cycle life, flexibility, and cost when designing ceiling suspension cable kits. Please provide your specific application details for optimal design.
Quality and Cost Control
We implement four-stage inspections with complete QC processes and solutions to ensure product quality while maintaining competitive pricing.
How to place an order?
Please provide complete specifications including: Material, Diameter, Construction, Coating, Length, Packing, Quantity, and any special Remarks.
Production Lead Time
Standard lead time is 15 days. Urgent orders can be accommodated upon request. Contact us for specific timing based on your order size.
Shipping Options
- Express: DHL, UPS, TNT, FEDEX (3-5 days)
- Sea Freight: Contact us with your port details for shipping arrangements
- Client-designated Agent: Provide your shipping agent's contact information
Quality Guarantee & Defective Products
Our defect rate is less than 0.2%. During the guarantee period, we will replace small quantities with new orders. For defective batches, we offer repair, replacement, or recall solutions based on the specific situation.
